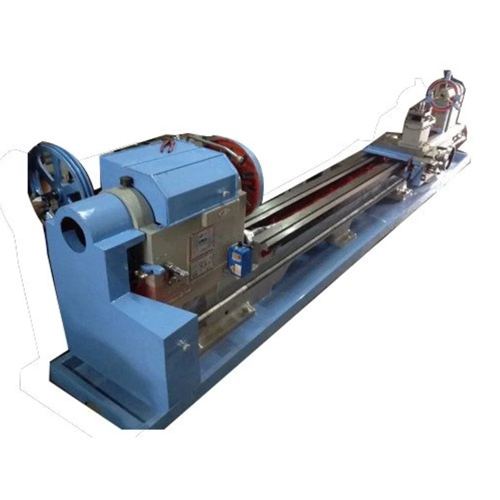

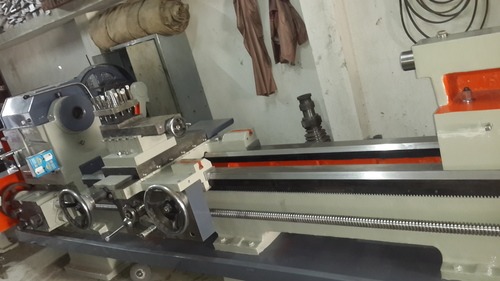

Precision Lathe Machine

Name: Precision Lathe Machine
Brand: UMA ENTERPRISE
Price: 300000 INR
Availability: InStock

Price 300000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Precision Lathe Machine Specification

Product Type
Precision Lathe Machine

Material
Cast Iron

Cutting Thickness
0.5-25 mm (depending on tool and workpiece)

Cutting Speed
35-2000 RPM (variable)

CNC Or Not
No, Conventional

Automatic Grade
Semi-Automatic

Control System
Manual Gear & Lever

Max. Swing Diameter
770 Millimeter (mm)

Voltage
415 V (Three Phase)

Weight (kg)
1050 kg

Dimension (L*W*H)
1800 mm x 800 mm x 1200 mm

Capacity
500 mm between centers

Feature
High Precision, Heavy Duty Bed, Hardened & Ground Guideways

Color
Grey & Blue

Bed Width
250 mm

Bed Length
1500 mm

Lubrication System
Centralized

Spindle Bore
40 mm

Taper of Spindle
MT-4

Feed System
Automatic Longitudinal and Cross Feed

Tailstock Quill Travel
120 mm

Power of Main Motor
2 HP (1.5 kW)

Distance Between Centers
1000 mm

Surface Finish
Milled and Ground

Tool Post
4-way

Chuck Size
200 mm

Coolant System
Equipped

Number of Spindle Speeds
8

Carriage Travel
800 mm

Precision Lathe Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash on Delivery (COD), Cash in Advance (CID)

Supply Ability
20 Units Per Month

Delivery Time
4-5 Days

Main Export Market(s)
Asia, Australia, Central America, North America, Africa, South America, Western Europe, Eastern Europe, Middle East

Main Domestic Market
All India

About Precision Lathe Machine

Precision Lathe Machine

All Geared Lathe Machine :

Technical Specification in mm

Perticular	250
Description
Height of Centre(mm)	250
Swing Over Bed (mm)	490
Swing Over Cross Slide (mm)	290
Distance Between Center (mm)	965mm
Max. Swing in Gap (mm)	770
BED
Bed Type	2 V & 2 Flat
Bed Width (mm)	325
Length of Gap in Front of Face Plate (mm)	240
HEAD STOCK
Number of Feeds	18
Spindel Speed Range : R.P.M.	32 TO 1650
Spindle Bore ( mm)	55
Spindle Taper Number	MT - 4
FEEDS AND THREADS
Number of Feeds	76
Range of longitudinal Feeds (mm/Rev)	0.026 to 0.936
Range of Cross Feeds (mm/rev)	0.016 to 0.62
Number of Threads	106
Range of Metric Threads/No.	0.2 to 7 mm (33)
Range of Inch Threads,No.	72 to 4 TPI (36)
Range of Module Threads/No.	0.3 to 3 Module (16)
Range of D.P. Threads/No.	44 to 8 D.P. (21)
Leed Screw Dia (mm)	38.1
Leed Screw Pitch (mm)	6 mm
SADDLE
Cross Slide Dimension (mm)	460 x 205
Cross Slide Travel (mm)	200
Compound Slide Traverse (mm)	150
TAIL STOCK
Spindle Dia (mm)	63.5
Spindle Taper Number	MT-4
Spindle Travel	175
Lateral Move to Tail Stock (mm)	5
MOTOR
Main MKotor (Kw.)	3

STANDARD ACCESSORIES

Four Position Tool Post, Toolpost Spanners, Center Adopter, 2 Nos. MT-3 Dead Centers, Electric Motor with Electrical Controls, Thread Dial Indicator, Camlock operating Handle, Chip Tray.

EXTRA ACCESSORIES

Collet attachment
Machine Lamp
Quick change Tool Post
Collet ( 1 mm to 25 mm ) each collet cost
Chuck Flange 8"
Coolant Pump & Fitting
Collet ( 4 mm to 40 mm ) each collet cost
Chuck Flange 10"
Carrier Plate
Taper Turning Attachment
Face plate ( 350 mm Dia )
Extra Center Height 2"
Rear Tool Post
Follow Rest
Digital Read out System (DRO)
Mechanical Brake
Steady Rest

Note :

All The above specifications are approximate and subject to change without prior notice as improvements are made from time to time.
The Description " standard accessories / features " confirms to its list not the photo of models shown in the catalog.

Heavy Duty Lathe Machine :

Technical Specification in mm

Parts	Specification	Heavy-1	Heavy-2	Heavy-3	Heavy-4	Heavy-5
Bed	Length of Bed Width of Bed Lenght of Gap in Front of Face Plate	5' 6" (1708) 12.75" (323) 7" (178)	7' (2135) 12.75"(323) 7" (178)	9' (2745) 12.75"(323) 7" (178)	10' (3050) 12.75"(323) 7" (178)	12' (3650) 12.75" (323) 7" (178)
Capacity	Height of Centre Swing over Bed Admit between center Movement of cross slide Movement of comp. slide	10" (254) 19" (480mm) 20" (508) 7II (190mm) 6" (152mm)	10" (254) 19"(480mm) 38 " (965) 7II (190mm) 6" (152mm)	10" (254) 19" (480mm) 62 " (1575) 7II (190mm) 6" (152mm)	10" (254) 19" (480mm) 74 " (1880) 7II (190mm) 6" (152mm)	10" (254) 19"(480mm) 98 " (2490) 7II (190mm) 6" (152mm)
Main Spindle	Spindle Nose Spindle Bore Tapper Bore	76 x 6 TPI 2.1/8 (54) MT - 4	76 x 6 TPI 2.1/8 (54) MT - 4	76 x 6 TPI 2.1/8 (54) MT - 4	76 x 6 TPI 2.1/8 (54) MT - 4	76 x 6 TPI 2.1/8 (54) MT - 4
Tail Stock Spindle	Diameter Morse tapper Travel	2.1/2" (63.5) MT - 4 7" (178mm)	2.1/2" (63.5) MT - 4 7" (178mm)	2.1/2" (63.5) MT - 4 7" (178mm)	2.1/2" (63.5) MT - 4 7" (178mm)	2.1/2" (63.5) MT - 4 7" (178mm)
Speed	No. of speed RPM Low & High	8 25 to 450	8 25 to 450	8 25 to 450	8 25 to 450	8 25 to 450
Threads	Metric thread Inch thread Lead screw	1 to 6 2 to 24 1II" (38mm)	1 to 6 2 to 24 1II" (38mm)	1 to 6 2 to 24 1II" (38mm)	1 to 6 2 to 24 1II" (38mm)	1 to 6 2 to 24 1II" (38mm)
Electric	Motor Power	3 H.P III	3 H.P III	3 H.P III	3 H.P III	3 H.P III
Drive	Counter to spindle Counter to motor	C 72 x 2 no. B 72 x 2 no.	C 72 x 2 no. B 72 x 2 no.	C 72x 2 no. B 72 x 2 no.	C 72x 2 no. B 72 x 2 no.	C 72x 2 no. B 72 x 2 no.
General	space (L x W x H)	81 x 45 x 50	99 x 45 x 50	122 x 45x50	134 x 45x 50	158 x 45 x 50

Technical Specification in mm

Parts	Specification	Medium 4' 6"	Medium 5' 3"	Medium 6
Bed	Length of Bed Width of Bed Length of Gap Length of Gap in Front of Face Plate	4' 6" (1370mm) 11 " (280mm) 5" (127mm) 5" (127mm)	5' 3 "(1600mm) 11 " (280mm) 5" (127mm) 5" (127mm)	6' (1830mm) 11 " (280mm) 5" (127mm) 5" (127mm)
Capacity	Height of Centre Admit between center Movement of cross slide Movement of comp. slide	8II (215mm) 20" (508mm) 6.75 (170mm) 5 " (127mm)	8II (215mm) 29" (740mm) 6.75 (170mm) 5 " (127mm)	8II (215mm) 38 " (965mm) 6.75 (170mm) 5 " (127mm)
Main Spindle	Spindle Nose Spindle Bore Tapper Bore	75mm x 6 TPI 2 1/8 " (55mm) MT - 4	75mm x 6 TPI 2 1/8 " (55mm) MT - 4	75mm x 6 TPI 2 1/8 " (55mm) MT - 4
Tail Stock Spindle	Diameter Morse tapper Travel	2" (50.8mm) MT - 4 6' (152mm)	2" (50.8mm) MT - 4 6' (152mm)	2" (50.8mm) MT - 4 6' (152mm)
Speed	No. of speed RPM Low & High	6 45 to 450	6 45 to 450	6 45 to 450
Threads	Metric thread Inch thread Lead screw	M 1 to 6 2 to 24 1I" (31.75mm)	M 1 to 6 2 to 24 1I" (31.75mm)	M 1 to 6 2 to 24 1I" (31.75mm)
Electric	Motor Power	2 H.P III	2 H.P III	2 H.P III
Drive	Counter to spindle Counter to motor	B - 48 x 2 no. B - 57 x 2 no.	B - 48 x 2 no. B - 57 x 2 no.	B - 48 x 2 no. B - 57 x 2 no.
General	Floor space (L x W x H)	65" x 39" x 55"	76" x 39" x 58"	84" x 39" x 55"

STANDARD ACCESSORIES

Chuck Plate, Face Plate, Change Gear Set, Steady Rest, Tool Post Key, Dead Centers, Center Adaptor, Motor Pully.

Note: Any Altertoin in respect of ourstd. specifiction will be welcomed at extra cost.

As improvements are constantly made in our machine the above specification, dimension and weight are subject to change without notice & are not binding on us.

Meduim Duty Lathe Machine :

STANDARD ACCESSORIES

Chuck Plate, Change Gear Set, Tool Post Key, Dead Centers, Center Adaptor, Motor Pully.

Note :

Any Altertoin in respect of ourstd. specifiction will be welcomed at extra cost.

As improvements are constantly made in our machine the above specification, dimension and weight are subject to change without notice & are not binding on us.

Light Duty Lathe Machine :

Technical Specification in mm

Parts	Specification	Light 4II
Bed	Length of Bed Width of Bed Length of Gap	4II (1370mm) 9II" (242mm) 4" (100mm)
Capacity	Height of Centre Swing over Bed Admit between center Movement of cross slide Movement of comp. slide	6II" (165mm) 12II" (320mm) 26" (661mm) 5" (127mm) 3" (75mm)
Main Spindle	Spindle Nose Spindle Bore Tapper Bore	60mm x 8 TPI 1II (40mm) MT - 3
Tail Stock Spindle	Diameter Morse tapper Travel	1 5/8" (40mm) MT - 3 4 (100mm)
Speed	No. of speed RPM Low & High	8 40 to 950
Threads	Metric thread Inch thread Lead screw	M 1 to 6 2 to 24 1" (25.4mm)
Electric	Motor Power	1 H.P III
Drive	Counter to spindle Counter to motor	B -42 B -52
General	Floor space (L x W x H)	65" x 28" x 55"

STANDARD ACCESSORIES

Chuck Plate, Change Gear Set, Tool Post Key, Dead Centers, Center Adaptor, Motor Pully.

Note :

Any Altertoin in respect of ourstd. specifiction will be welcomed at extra cost. As improvements are constantly made in our machine the above specification, dimension and weight are subject to change without notice & are not binding on us.

Engineered for Superior Precision

Every detail of this lathe machine focuses on achieving impeccable accuracy. With its heavy-duty bed and hardened, ground guideways, it reliably holds tight tolerances, making it ideal for demanding turning and facing operations in industrial environments.

Versatile and Robust for Industrial Tasks

Capable of handling a broad spectrum of workpiece dimensions, this lathe accommodates parts up to 1000 mm between centers and a maximum swing diameter of 770 mm. The semi-automatic feed system, 4-way tool post, and variable RPM support diverse machining processes from roughing to finishing.

FAQ's of Precision Lathe Machine:

Q: How is the feed system operated on this precision lathe machine?

A: The lathe features an automatic longitudinal and cross feed system, controlled manually via gears and levers, allowing for consistent feeding during turning and facing operations.

Q: What is the process for changing spindle speeds?

A: The spindle speeds, ranging from 35 to 2000 RPM, are altered manually using the gear and lever control system. This allows operators to select from eight available speeds based on the requirements of the workpiece and cutting tool.

Q: When should the centralized lubrication system be used?

A: The centralized lubrication system is designed for regular use during machining operations to ensure all moving parts remain adequately lubricated, improving precision and prolonging the machine's lifespan.

Q: Where is this lathe machine primarily used?

A: This lathe is primarily utilized in industrial workshops, manufacturing units, tool rooms, and maintenance departments for machining various metals and components requiring high precision.

Q: What are the main benefits of the hardened and ground guideways?

A: Hardened and ground guideways provide excellent wear resistance, enhanced accuracy, and smooth carriage movement, resulting in consistently precise machining over extended periods of use.

Q: Can this lathe machine handle large workpieces?

A: Yes, with a maximum swing diameter of 770 mm and a 1000 mm distance between centers, it is capable of accommodating and machining large and heavy workpieces efficiently.
