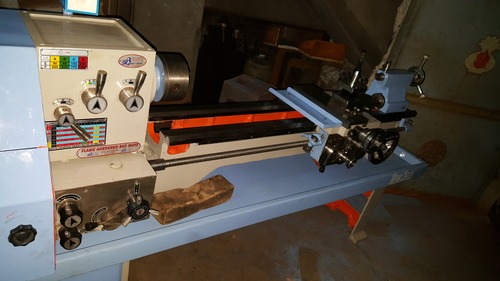

Industrial Lathe Machine

Industrial Lathe Machine

165000 INR/Piece

Product Details:

X

Industrial Lathe Machine Price And Quantity

  • 165000 INR/Piece
  • 01 Unit

Industrial Lathe Machine Trade Information

  • 20 Unit Per Month
  • 4-5 Days
  • Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
  • All India

Product Description

Auto lathe machine :-

 ll Geared Lathe Machine :

Technical Specification in mm

Perticular

250

Description

Height of Centre(mm)

250

Swing Over Bed (mm)

490

Swing Over Cross Slide (mm)

290

Distance Between Center (mm)

965mm

Max. Swing in Gap (mm)

770

BED

Bed Type

2 V & 2 Flat

Bed Width (mm)

325

Length of Gap in Front of Face Plate (mm)

240

HEAD STOCK

Number of Feeds

18

Spindel Speed Range : R.P.M.

32 TO 1650

Spindle Bore ( mm)

55

Spindle Taper Number

MT - 4

FEEDS AND THREADS

Number of Feeds

76

Range of longitudinal Feeds (mm/Rev)

0.026 to 0.936

Range of Cross Feeds (mm/rev)

0.016 to 0.62

Number of Threads

106

Range of Metric Threads/No.

0.2 to 7 mm (33)

Range of Inch Threads,No.

72 to 4 TPI (36)

Range of Module Threads/No.

0.3 to 3 Module (16)

Range of D.P. Threads/No.

44 to 8 D.P. (21)

Leed Screw Dia (mm)

38.1

Leed Screw Pitch (mm)

6 mm

SADDLE

Cross Slide Dimension (mm)

460 x 205

Cross Slide Travel (mm)

200

Compound Slide Traverse (mm)

150

TAIL STOCK

Spindle Dia (mm)

63.5

Spindle Taper Number

MT-4

Spindle Travel

175

Lateral Move to Tail Stock (mm)

5

MOTOR

Main MKotor (Kw.)

3


 STANDARD ACCESSORIES

Four Position Tool Post, Toolpost Spanners, Center Adopter, 2 Nos. MT-3 Dead Centers, Electric Motor with Electrical Controls, Thread Dial Indicator, Camlock operating Handle, Chip Tray.

EXTRA ACCESSORIES

  • Collet attachment
  • Machine Lamp
  • Quick change Tool Post
  • Collet ( 1 mm to 25 mm ) each collet cost
  • Chuck Flange 8"
  • Coolant Pump & Fitting
  • Collet ( 4 mm to 40 mm ) each collet cost
  • Chuck Flange 10"
  • Carrier Plate
  • Taper Turning Attachment
  • Face plate ( 350 mm Dia )
  • Extra Center Height 2"
  • Rear Tool Post
  • Follow Rest
  • Digital Read out System (DRO)
  • Mechanical Brake
  • Steady Rest
Note :

  •  All The above specifications are approximate and subject to change without prior notice as improvements are made from time to time.
  • The Description " standard accessories / features " confirms to its list not the photo of models shown in the catalog.

 Heavy Duty Lathe Machine :

Technical Specification in mm

Parts

Specification

Heavy-1

Heavy-2

Heavy-3

Heavy-4

Heavy-5

Bed

Length of Bed
Width of Bed
Lenght of Gap in Front of Face Plate

5' 6" (1708)
12.75" (323)
7" (178)

7' (2135)
12.75"(323)
7" (178)

9' (2745)
12.75"(323)
7" (178)

10' (3050)
12.75"(323)
7" (178)

12' (3650)
12.75" (323)
7" (178)

Capacity

Height of Centre
Swing over Bed
Admit between center
Movement of cross slide
Movement of comp. slide

10" (254)
19" (480mm)
20" (508)
7II (190mm)
6" (152mm)

10" (254)
19"(480mm)
38 " (965)
7II (190mm)
6" (152mm)

10" (254)
19" (480mm)
62 " (1575)
7II (190mm)
6" (152mm)

10" (254)
19" (480mm)
74 " (1880)
7II (190mm)
6" (152mm)

10" (254)
19"(480mm)
98 " (2490)
7II (190mm)
6" (152mm)

Main Spindle

Spindle Nose
Spindle Bore
Tapper Bore

76 x 6 TPI
2.1/8 (54)
MT - 4

76 x 6 TPI
2.1/8 (54)
MT - 4

76 x 6 TPI
2.1/8 (54)
MT - 4

76 x 6 TPI
2.1/8 (54)
MT - 4

76 x 6 TPI
2.1/8 (54)
MT - 4

Tail Stock Spindle

Diameter
Morse tapper
Travel

2.1/2" (63.5)
MT - 4
7" (178mm)

2.1/2" (63.5)
MT - 4
7" (178mm)

2.1/2" (63.5)
MT - 4
7" (178mm)

2.1/2" (63.5)
MT - 4
7" (178mm)

2.1/2" (63.5)
MT - 4
7" (178mm)

Speed

No. of speed
RPM Low & High

8
25 to 450

8
25 to 450

8
25 to 450

8
25 to 450

8
25 to 450

Threads

Metric thread
Inch thread
Lead screw

1 to 6
2 to 24
1II" (38mm)

1 to 6
2 to 24
1II" (38mm)

1 to 6
2 to 24
1II" (38mm)

1 to 6
2 to 24
1II" (38mm)

1 to 6
2 to 24
1II" (38mm)

Electric

Motor Power

3 H.P III

3 H.P III

3 H.P III

3 H.P III

3 H.P III

Drive

Counter to spindle
Counter to motor

C 72 x 2 no.
B 72 x 2 no.

C 72 x 2 no.
B 72 x 2 no.

C 72x 2 no.
B 72 x 2 no.

C 72x 2 no.
B 72 x 2 no.

C 72x 2 no.
B 72 x 2 no.

General

space (L x W x H)

81 x 45 x 50

99 x 45 x 50

122 x 45x50

134 x 45x 50

158 x 45 x 50

Technical Specification in mm

Parts

Specification

Medium 4' 6"

Medium 5' 3"

Medium 6

Bed

Length of Bed
Width of Bed
Length of Gap
Length of Gap in Front of Face Plate

4' 6" (1370mm)
11 " (280mm)
5" (127mm)
5" (127mm)

5' 3 "(1600mm)
11 " (280mm)
5" (127mm)
5" (127mm)

6' (1830mm)
11 " (280mm)
5" (127mm)
5" (127mm)

Capacity

Height of Centre
Admit between center
Movement of cross slide
Movement of comp. slide

8II (215mm)
20" (508mm)
6.75 (170mm)
5 " (127mm)

8II (215mm)
29" (740mm)
6.75 (170mm)
5 " (127mm)

8II (215mm)
38 " (965mm)
6.75 (170mm)
5 " (127mm)

Main Spindle

Spindle Nose
Spindle Bore
Tapper Bore

75mm x 6 TPI
2 1/8 " (55mm)
MT - 4

75mm x 6 TPI
2 1/8 " (55mm)
MT - 4

75mm x 6 TPI
2 1/8 " (55mm)
MT - 4

Tail Stock Spindle

Diameter
Morse tapper
Travel

2" (50.8mm)
MT - 4
6' (152mm)

2" (50.8mm)
MT - 4
6' (152mm)

2" (50.8mm)
MT - 4
6' (152mm)

Speed

No. of speed
RPM Low & High

6
45 to 450

6
45 to 450

6
45 to 450

Threads

Metric thread
Inch thread
Lead screw

M 1 to 6
2 to 24
1I" (31.75mm)

M 1 to 6
2 to 24
1I" (31.75mm)

M 1 to 6
2 to 24
1I" (31.75mm)

Electric

Motor Power

2 H.P III

2 H.P III

2 H.P III

Drive

Counter to spindle
Counter to motor

B - 48 x 2 no.
B - 57 x 2 no.

B - 48 x 2 no.
B - 57 x 2 no.

B - 48 x 2 no.
B - 57 x 2 no.

General

Floor space (L x W x H)

65" x 39" x 55"

76" x 39" x 58"

84" x 39" x 55"




 STANDARD ACCESSORIES

Chuck Plate, Face Plate, Change Gear Set, Steady Rest, Tool Post Key, Dead Centers, Center Adaptor, Motor Pully.

Note: Any Altertoin in respect of ourstd. specifiction will be welcomed at extra cost.

As improvements are constantly made in our machine the above specification, dimension and weight are subject to change without notice & are not binding on us.

Meduim Duty Lathe Machine :





 STANDARD ACCESSORIES

Chuck Plate, Change Gear Set, Tool Post Key, Dead Centers, Center Adaptor, Motor Pully.

Note :

Any Altertoin in respect of ourstd. specifiction will be welcomed at extra cost.

As improvements are constantly made in our machine the above specification, dimension and weight are subject to change without notice & are not binding on us.

Light Duty Lathe Machine :

Technical Specification in mm

Parts

Specification

Light 4II

Bed

Length of Bed
Width of Bed
Length of Gap

4II (1370mm)
9II" (242mm)
4" (100mm)

Capacity

Height of Centre
Swing over Bed
Admit between center
Movement of cross slide
Movement of comp. slide

6II" (165mm)
12II" (320mm)
26" (661mm)
5" (127mm)
3" (75mm)

Main Spindle

Spindle Nose
Spindle Bore
Tapper Bore

60mm x 8 TPI
1II (40mm)
MT - 3

Tail Stock Spindle

Diameter
Morse tapper
Travel

1 5/8" (40mm)
MT - 3
4 (100mm)

Speed

No. of speed
RPM Low & High

8
40 to 950

Threads

Metric thread
Inch thread
Lead screw

M 1 to 6
2 to 24
1" (25.4mm)

Electric

Motor Power

1 H.P III

Drive

Counter to spindle
Counter to motor

B -42
B -52

General

Floor space (L x W x H)

65" x 28" x 55"




 STANDARD ACCESSORIES

Chuck Plate, Change Gear Set, Tool Post Key, Dead Centers, Center Adaptor, Motor Pully.

Note :

Any Altertoin in respect of ourstd. specifiction will be welcomed at extra cost. As improvements are constantly made in our machine the above specification, dimension and weight are subject to change without notice & are not binding on us.
