Roll Turning Lathe Machine

Get a Price/Quote

MOQ : 01 Unit

Roll Turning Lathe Machine Specification

Product Type
Heavy Duty Roll Turning Lathe Machine

Material
High-grade cast iron structure with steel components

Automatic Grade
Semi-Automatic

Control System
Manual handwheel and gearbox control

Feature
Other

Color
Industrial Green/Gray (subject to brand specifics)

Gearbox
All-geared headstock with multiple speed ranges

Bed Type
Double V-Bed with flame-hardened guideways

Chuck Size
Up to 600 mm (customizable)

Lead Screw
Precision ground for accuracy

Motor Power
15 HP (approximate for heavy roll turning)

Tailstock
Heavy duty, with self-locking arrangement

Coolant System
Integrated coolant recirculation system

Distance Between Centers
4000 mm (approximate)

Spindle Bore
150 mm

Cross Slide Travel
450 mm

Roll Turning Lathe Machine Trade Information

Minimum Order Quantity
01 Unit

Supply Ability
20 Units Per Month

Delivery Time
4-5 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Middle East, Africa

Main Domestic Market
All India

About Roll Turning Lathe Machine

Roll turning lathe machine

All Geared Lathe Machine :

Technical Specification in mm

Perticular	250
Description
Height of Centre(mm)	250
Swing Over Bed (mm)	490
Swing Over Cross Slide (mm)	290
Distance Between Center (mm)	965mm
Max. Swing in Gap (mm)	770
BED
Bed Type	2 V & 2 Flat
Bed Width (mm)	325
Length of Gap in Front of Face Plate (mm)	240
HEAD STOCK
Number of Feeds	18
Spindel Speed Range : R.P.M.	32 TO 1650
Spindle Bore ( mm)	55
Spindle Taper Number	MT - 4
FEEDS AND THREADS
Number of Feeds	76
Range of longitudinal Feeds (mm/Rev)	0.026 to 0.936
Range of Cross Feeds (mm/rev)	0.016 to 0.62
Number of Threads	106
Range of Metric Threads/No.	0.2 to 7 mm (33)
Range of Inch Threads,No.	72 to 4 TPI (36)
Range of Module Threads/No.	0.3 to 3 Module (16)
Range of D.P. Threads/No.	44 to 8 D.P. (21)
Leed Screw Dia (mm)	38.1
Leed Screw Pitch (mm)	6 mm
SADDLE
Cross Slide Dimension (mm)	460 x 205
Cross Slide Travel (mm)	200
Compound Slide Traverse (mm)	150

TAIL STOCK
Spindle Dia (mm)	63.5
Spindle Taper Number	MT-4
Spindle Travel	175
Lateral Move to Tail Stock (mm)	5
MOTOR
Main MKotor (Kw.)	3

STANDARD ACCESSORIES Four Position Tool Post, Toolpost Spanners, Center Adopter, 2 Nos. MT-3 Dead Centers, Electric Motor with Electrical Controls, Thread Dial Indicator, Camlock operating Handle, Chip Tray

EXTRA ACCESSORIES

Collet attachment
Machine Lamp
Quick change Tool Post
Collet ( 1 mm to 25 mm ) each collet cost
Chuck Flange 8"
Coolant Pump & Fitting
Collet ( 4 mm to 40 mm ) each collet cost
Chuck Flange 10"
Carrier Plate
Taper Turning Attachment
Face plate ( 350 mm Dia )
Extra Center Height 2"
Rear Tool Post
Follow Rest
Digital Read out System (DRO)
Mechanical Brake
Steady Rest

Note :

All The above specifications are approximate and subject to change without prior notice as improvements are made from time to time.

The Description " standard accessories / features " confirms to its list not the photo of models shown in the catalog.

Heavy Duty Lathe Machine :

Technical Specification in mm

Parts	Specification	Heavy-1	Heavy-2	Heavy-3	Heavy-4	Heavy-5
Bed	Length of Bed Width of Bed Lenght of Gap in Front of Face Plate	5 6" (1708) 12.75" (323) 7" (178)	7 (2135) 12.75"(323) 7" (178)	9 (2745) 12.75"(323) 7" (178)	10 (3050) 12.75"(323) 7" (178)	12 (3650) 12.75" (323) 7" (178)
Capacity	Height of Centre Swing over Bed Admit between center Movement of cross slide Movement of comp. slide	10" (254) 19" (480mm) 20" (508) 7II (190mm) 6" (152mm)	10" (254) 19"(480mm) 38 " (965) 7II (190mm) 6" (152mm)	10" (254) 19" (480mm) 62 " (1575) 7II (190mm) 6" (152mm)	10" (254) 19" (480mm) 74 " (1880) 7II (190mm) 6" (152mm)	10" (254) 19"(480mm) 98 " (2490) 7II (190mm) 6" (152mm)
Main Spindle	Spindle Nose Spindle Bore Tapper Bore	76 x 6 TPI 2.1/8 (54) MT - 4	76 x 6 TPI 2.1/8 (54) MT - 4	76 x 6 TPI 2.1/8 (54) MT - 4	76 x 6 TPI 2.1/8 (54) MT - 4	76 x 6 TPI 2.1/8 (54) MT - 4
Tail Stock Spindle	Diameter Morse tapper Travel	2.1/2" (63.5) MT - 4 7" (178mm)	2.1/2" (63.5) MT - 4 7" (178mm)	2.1/2" (63.5) MT - 4 7" (178mm)	2.1/2" (63.5) MT - 4 7" (178mm)	2.1/2" (63.5) MT - 4 7" (178mm)
Speed	No. of speed RPM Low & High	8 25 to 450	8 25 to 450	8 25 to 450	8 25 to 450	8 25 to 450
Threads	Metric thread Inch thread Lead screw	1 to 6 2 to 24 1II" (38mm)	1 to 6 2 to 24 1II" (38mm)	1 to 6 2 to 24 1II" (38mm)	1 to 6 2 to 24 1II" (38mm)	1 to 6 2 to 24 1II" (38mm)
Electric	Motor Power	3 H.P III	3 H.P III	3 H.P III	3 H.P III	3 H.P III
Drive	Counter to spindle Counter to motor	C 72 x 2 no. B 72 x 2 no.	C 72 x 2 no. B 72 x 2 no.	C 72x 2 no. B 72 x 2 no.	C 72x 2 no. B 72 x 2 no.	C 72x 2 no. B 72 x 2 no.
General	space (L x W x H)	81 x 45 x 50	99 x 45 x 50	122 x 45x50	134 x 45x 50	158 x 45 x 50

Technical Specification in mm

Parts	Specification	Medium 4 6"	Medium 5 3"	Medium 6
Bed	Length of Bed Width of Bed Length of Gap Length of Gap in Front of Face Plate	4 6" (1370mm) 11 " (280mm) 5" (127mm) 5" (127mm)	5 3 "(1600mm) 11 " (280mm) 5" (127mm) 5" (127mm)	6 (1830mm) 11 " (280mm) 5" (127mm) 5" (127mm)
Capacity	Height of Centre Admit between center Movement of cross slide Movement of comp. slide	8II (215mm) 20" (508mm) 6.75 (170mm) 5 " (127mm)	8II (215mm) 29" (740mm) 6.75 (170mm) 5 " (127mm)	8II (215mm) 38 " (965mm) 6.75 (170mm) 5 " (127mm)
Main Spindle	Spindle Nose Spindle Bore Tapper Bore	75mm x 6 TPI 2 1/8 " (55mm) MT - 4	75mm x 6 TPI 2 1/8 " (55mm) MT - 4	75mm x 6 TPI 2 1/8 " (55mm) MT - 4
Tail Stock Spindle	Diameter Morse tapper Travel	2" (50.8mm) MT - 4 6 (152mm)	2" (50.8mm) MT - 4 6 (152mm)	2" (50.8mm) MT - 4 6 (152mm)
Speed	No. of speed RPM Low & High	6 45 to 450	6 45 to 450	6 45 to 450
Threads	Metric thread Inch thread Lead screw	M 1 to 6 2 to 24 1I" (31.75mm)	M 1 to 6 2 to 24 1I" (31.75mm)	M 1 to 6 2 to 24 1I" (31.75mm)
Electric	Motor Power	2 H.P III	2 H.P III	2 H.P III
Drive	Counter to spindle Counter to motor	B - 48 x 2 no. B - 57 x 2 no.	B - 48 x 2 no. B - 57 x 2 no.	B - 48 x 2 no. B - 57 x 2 no.
General	Floor space (L x W x H)	65" x 39" x 55"	76" x 39" x 58"	84" x 39" x 55"

STANDARD ACCESSORIES

Chuck Plate, Face Plate, Change Gear Set, Steady Rest, Tool Post Key, Dead Centers, Center Adaptor, Motor Pully.

Note:Any Altertoin in respect of ourstd. specifiction will be welcomed at extra cost.

As improvements are constantly made in our machine the above specification, dimension and weight are subject to change without notice & are not binding on us.

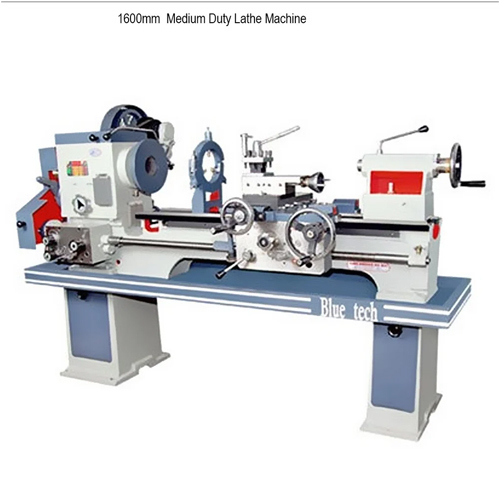

Meduim Duty Lathe Machine :

STANDARD ACCESSORIES Chuck Plate, Change Gear Set, Tool Post Key, Dead Centers, Center Adaptor, Motor Pully.

Note :

Any Altertoin in respect of ourstd. specifiction will be welcomed at extra cost.
As improvements are constantly made in our machine the above specification, dimension and weight are subject to change without notice & are not binding on us.

Light Duty Lathe Machine :

Technical Specification in mm

Parts	Specification	Light 4II
Bed	Length of Bed Width of Bed Length of Gap	4II (1370mm) 9II" (242mm) 4" (100mm)
Capacity	Height of Centre Swing over Bed Admit between center Movement of cross slide Movement of comp. slide	6II" (165mm) 12II" (320mm) 26" (661mm) 5" (127mm) 3" (75mm)
Main Spindle	Spindle Nose Spindle Bore Tapper Bore	60mm x 8 TPI 1II (40mm) MT - 3
Tail Stock Spindle	Diameter Morse tapper Travel	1 5/8" (40mm) MT - 3 4 (100mm)
Speed	No. of speed RPM Low & High	8 40 to 950
Threads	Metric thread Inch thread Lead screw	M 1 to 6 2 to 24 1" (25.4mm)
Electric	Motor Power	1 H.P III
Drive	Counter to spindle Counter to motor	B -42 B -52
General	Floor space (L x W x H)	65" x 28" x 55"

STANDARD ACCESSORIES Chuck Plate, Change Gear Set, Tool Post Key, Dead Centers, Center Adaptor, Motor Pully.

Note :

Any Altertoin in respect of ourstd. specifiction will be welcomed at extra cost. As improvements are constantly made in our machine the above specification, dimension and weight are subject to change without notice & are not binding on us.

Superior Heavy-Duty Performance

Engineered for large-scale industrial tasks, the Double V-Bed Roll Turning Lathe excels in handling long and heavy workpieces. Its rugged design, enhanced bed stability, and flame-hardened guideways minimize vibration, ensuring consistently precise results even under intense workloads.

Designed for Versatility and Customization

Accommodating a variety of workpiece sizes, the lathe offers a customizable chuck up to 600 mm and significant cross-slide travel for diverse applications. The large spindle bore and multiple speed gearbox enable efficient machining of different materials and roll dimensions.

Operator-Centric Manual Control

This non-CNC, semi-automatic lathe empowers skilled operators with manual handwheel and gearbox controls, offering flexibility and direct oversight. The heavy-duty tailstock and reliable self-locking mechanism further simplify the adjustment and alignment process.

FAQs of Roll Turning Lathe Machine:

Q: How does the double V-bed with flame-hardened guideways enhance lathe precision?

A: The double V-bed design, combined with flame-hardened guideways, delivers exceptional alignment and rigidity, reducing deflection and wear during heavy-duty turning. This ensures that the lathe maintains accuracy even when handling large rolls and tough materials.

Q: What are the main benefits of choosing this lathe for roll turning and large workpieces?

A: Its heavy-duty build, 4000 mm center distance, large spindle bore, and customizable chuck size make it ideal for manufacturers needing reliable performance on sizable workpieces. The anti-vibration structure and integrated coolant system ensure durability and high-quality surface finishes.

Q: When is this lathe most suitable for use in industrial applications?

A: This machine is best suited when precision turning of long or heavy cylinders, such as paper mill rolls or large shafts, is required. Its powerful 15 HP motor and robust construction are optimized for continuous and demanding production environments.

Q: Where is this type of lathe typically installed and used?

A: These roll turning lathes are primarily installed in facilities such as steel plants, large-scale manufacturing workshops, and machining centers across India. Their versatility and robust capacity suit any location handling oversized rolls or lengthy components.

Q: What is the process of changing speeds or settings on this manually operated lathe?

A: Speed adjustments are made via the all-geared headstock, which offers multiple speed ranges. Operators use the manual handwheel and selector levers on the gearbox to fine-tune spindle speed and feed rates for different materials and turning tasks.

Q: How does the integrated coolant system support lengthy turning operations?

A: The built-in coolant recirculation system continuously delivers coolant to the cutting zone, minimizing heat buildup and tool wear. This enables prolonged, high-precision machining without frequent interruptions, protecting both the tool and the workpieces integrity.
