Automatic Light Duty Lathe Machine

Automatic Light Duty Lathe Machine

75000 INR/Piece

Product Details:

X

Automatic Light Duty Lathe Machine Price And Quantity

  • 1 Piece
  • 75000 INR/Piece

Automatic Light Duty Lathe Machine Trade Information

  • 20 Piece Per Month
  • 4-5 Days
  • Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
  • All India

Product Description

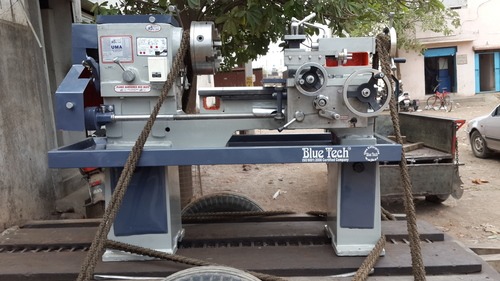

Light Duty Lathe Machine

Since our inception in 2002, we Uma Enterprise is working as a manufacturer, exporter, supplier and distributor of Light Duty Lathe Machine. Our offered machine is used for wood turning, metal spinning, etc. offered in various specifications, this machine is manufactured with high precision under the supervision of our qualified professionals by making use of premium quality components. In addition to this, Light Duty Lathe Machine can be obtained from us at reasonable rates.

Product Features:

  • Easy To Use
  • Consistent Performance
  • Low Maintenance
  • Cost effective
Technical Specification

Parts

Specification

Light 4II

Bed

Length of Bed
Width of Bed
Length of Gap

4II (1370mm)
9II" (242mm)
4" (100mm)

Capacity

Height of Centre
Swing over Bed
Admit between center
Movement of cross slide
Movement of comp. slide

6II" (165mm)
12II" (320mm)
26" (661mm)
5" (127mm)
3" (75mm)

Main Spindle

Spindle Nose
Spindle Bore
Tapper Bore

60mm x 8 TPI
1II (40mm)
MT - 3

Tail Stock Spindle

Diameter
Morse tapper
Travel

1 5/8" (40mm)
MT - 3
4 (100mm)

Speed

No. of speed
RPM Low & High

8
40 to 950

Threads

Metric thread
Inch thread
Lead screw

M 1 to 6
2 to 24
1" (25.4mm)

Electric

Motor Power

1 H.P III

Drive

Counter to spindle
Counter to motor

B -42
B -52

General

Floor space (L x W x H)

65" x 28" x 55"

 STANDARD ACCESSORIES

Chuck Plate, Change Gear Set, Tool Post Key, Dead Centers, Center Adaptor, Motor Pully.

Note :

Any Altertoin in respect of ourstd. specifiction will be welcomed at extra cost. As improvements are constantly made in our machine the above specification, dimension and weight are subject to change without notice & are not binding on us
